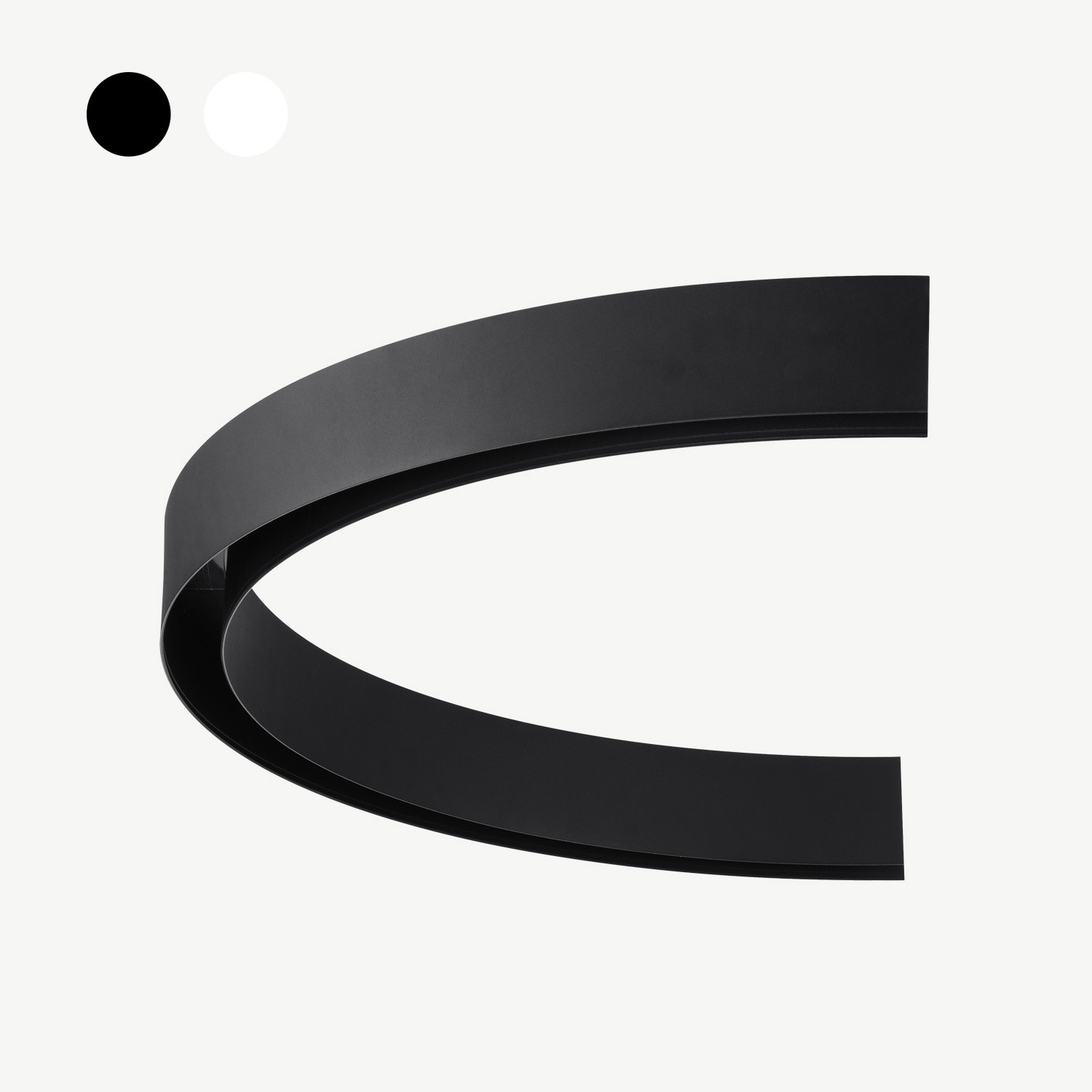

CLIXX SLIM Magnetic track system - surface/pendant 1/2 circle Ø 1000
With the CLIXX SLIM circle surface-mounted/pendant ½ profile, you can extend the straight profiles and create a dynamic contrast. The CLIXX SLIM profile can easily be adapted to the curves of your walls, for example. Connecting the CLIXX SLIM circle connection is just as easy as connecting a corner connection using the electrical connectors and mechanical connectors. The profile has compact dimensions of 58 mm high and 27 mm wide. The CLIXX SLIM surface/ pendant profile is made of durable aluminum and then powder-coated. The surface/pendant profiles are available in black and white.
We offer the CLIXX SLIM magnetic 24 V rail system in the following dimming methods:
TRIAC dimmable (trailing edge)
Perhaps the best-known form of LED dimming, where the lamp can be easily operated with an LED wall dimmer. With a dimming range of 100% you can dim the lamp until it is completely off. The driver is exchanged with a dimmable driver. No additional control wires are required for TRIAC dimming (trailing edge).
With DALI you have full control over the light. DALI makes it possible to set each lamp individually or to assign it to a group. With DALI you can create different light scenes in every room which are stored. An optional motion sensor and dimmer help to significantly reduce energy consumption. This makes DALI particularly suitable for objects such as offices, shops, restaurants or hotels. 2 extra control wires are required to connect DALI.
The LED driver is controlled by an external signal between 1 and 10V. Perfectly dimmable in a range from 10% to 100%. Applicable with many home automation systems. It is necessary to place a 1-10V actuator between the home automation system and the fixture. Two extra control wires are needed to connect 1-10V.
Download here the installation instructions of the CLIXX systeem (pdf)
