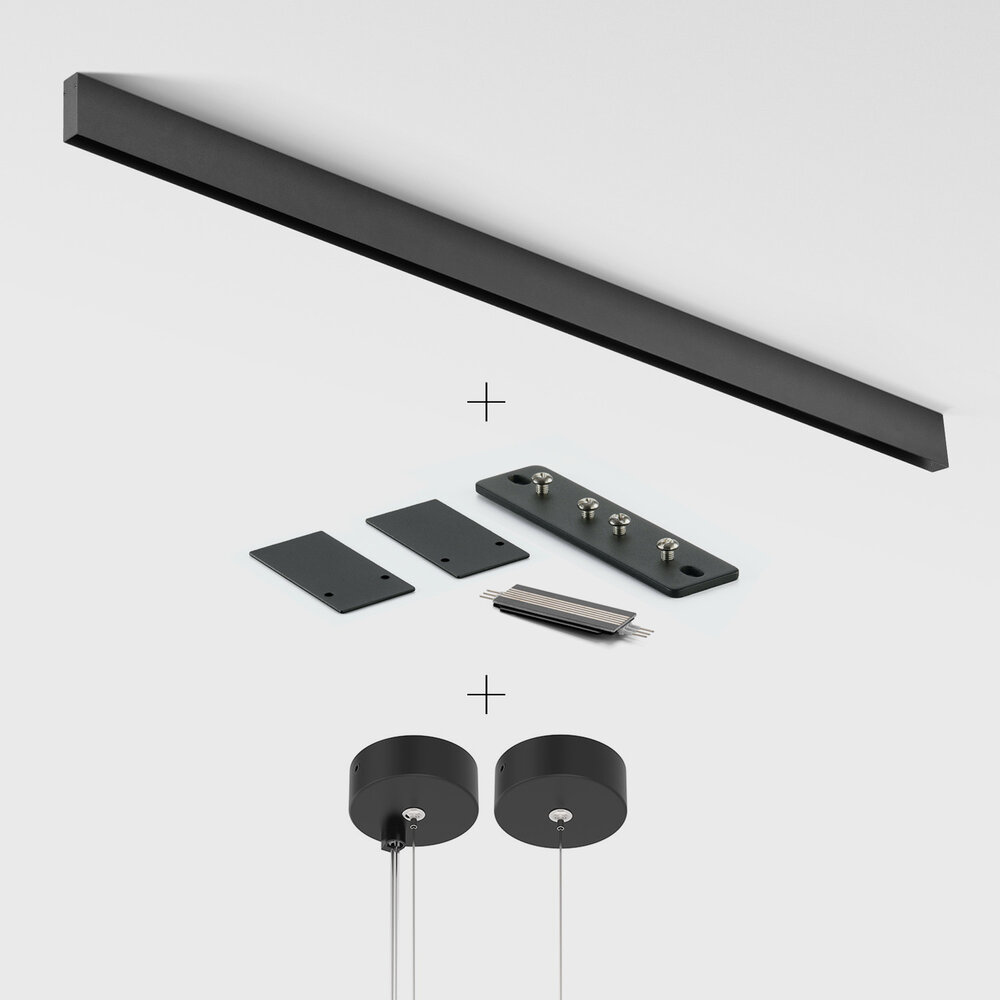

CLIXX magnetic tracks - pendant profile - black:
|✓ Two end caps||✕ Driver|
|✓ Electrical connector||✕ Driver box (if needed)|
|✓ Mechanical connector||✕ Light modules|
|✓ Pendant set|
The CLIXX pendant profile is equipped with a pendant set, making it easy to install. The profile has a compact size of 76 mm high and 39 mm wide. The CLIXX pendant profile is made of durable aluminium and then powder-coated. The pendant profiles are available in black and white. Available in lengths of 1 and 2 meters, the profiles can also be shortened to create the exact desired length.
We offer the CLIXX magnetic 24V rail system in the following dimming methods:
TRIAC dimmable (trailing edge)
Perhaps the best-known form of LED dimming, where the lamp can be easily operated with an LED wall dimmer. With a dimming range of 100% you can dim the lamp until it is completely off. The driver is exchanged with a dimmable driver. No additional control wires are required for TRIAC dimming (trailing edge).
With DALI you have full control over the light. DALI makes it possible to set each lamp individually or to assign it to a group. With DALI you can create different light scenes in every room which are stored. An optional motion sensor and dimmer help to significantly reduce energy consumption. This makes DALI particularly suitable for objects such as offices, shops, restaurants or hotels. 2 extra control wires are required to connect DALI.
The LED driver is controlled by an external signal between 1 and 10V. Perfectly dimmable in a range from 10% to 100%. Applicable with many home automation systems. It is necessary to place a 1-10V actuator between the home automation system and the fixture. Two extra control wires are needed to connect 1-10V.
