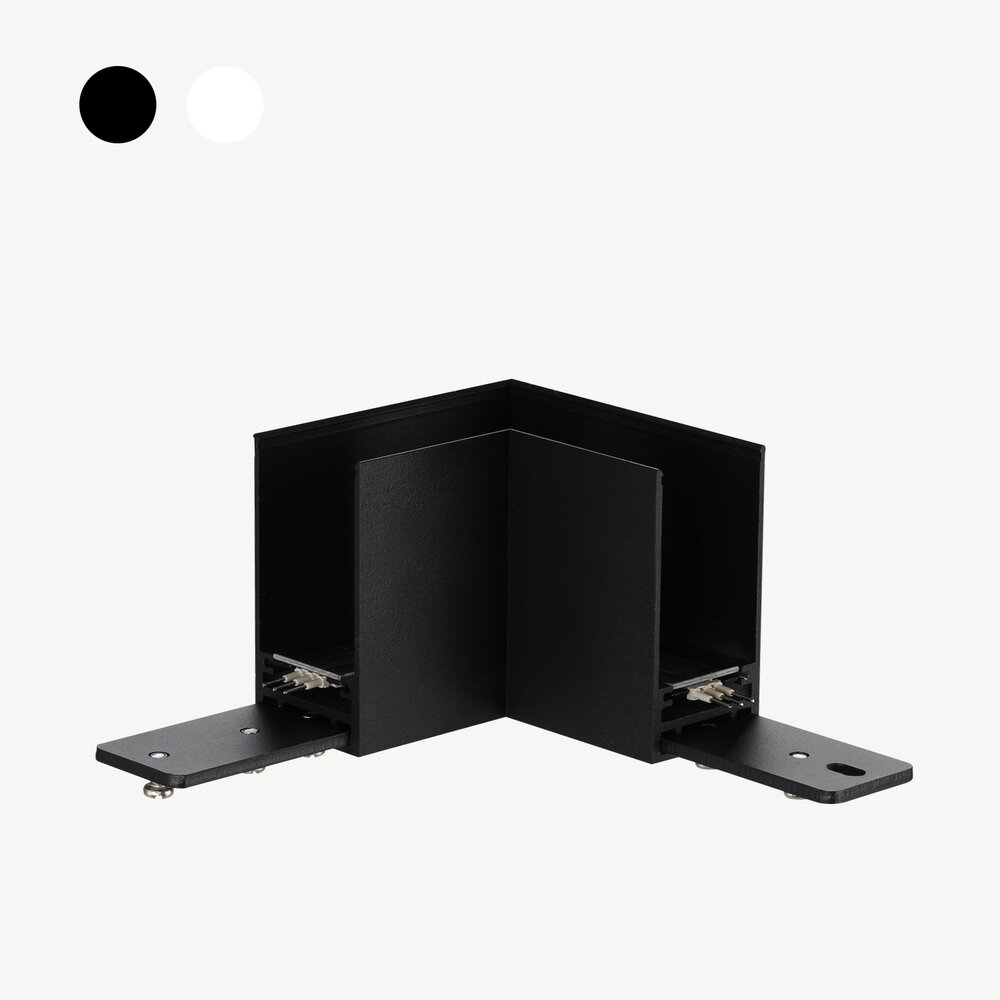

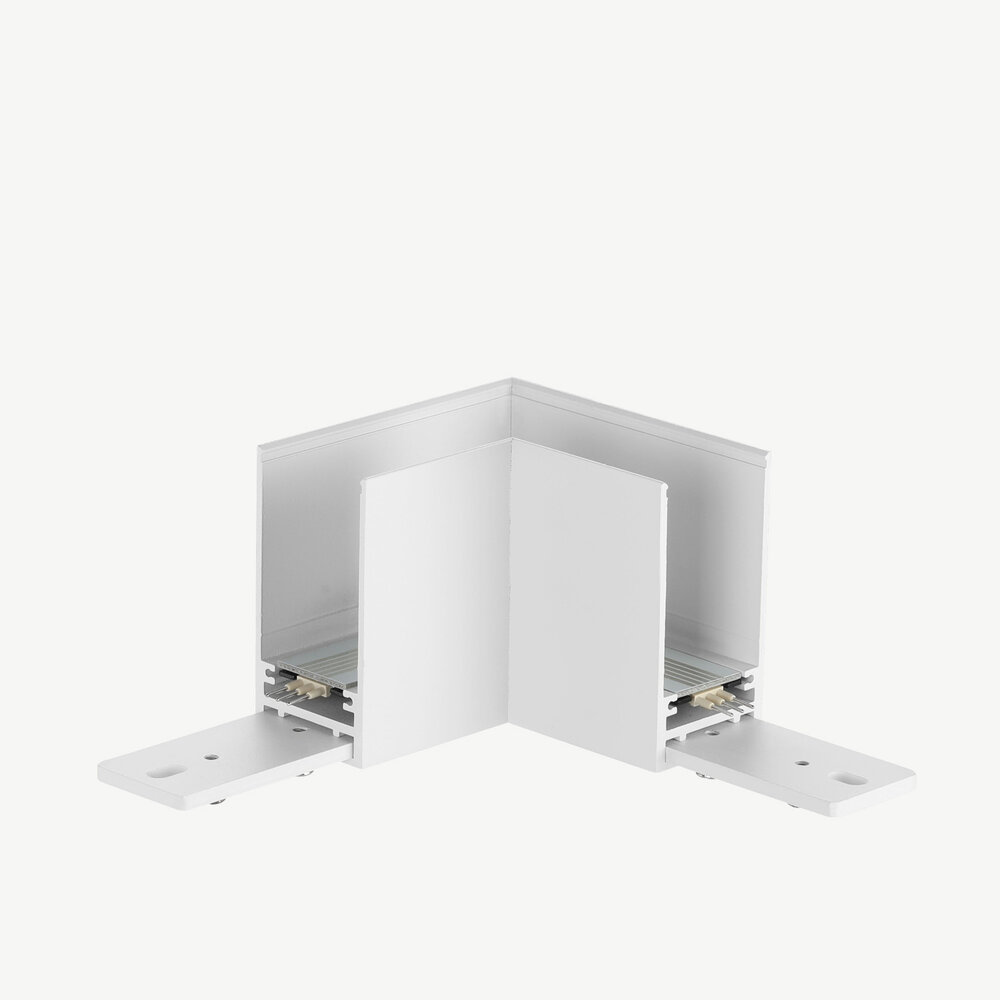

CLIXX magnetic track lighting system - Surface/pendant 90° corner connection

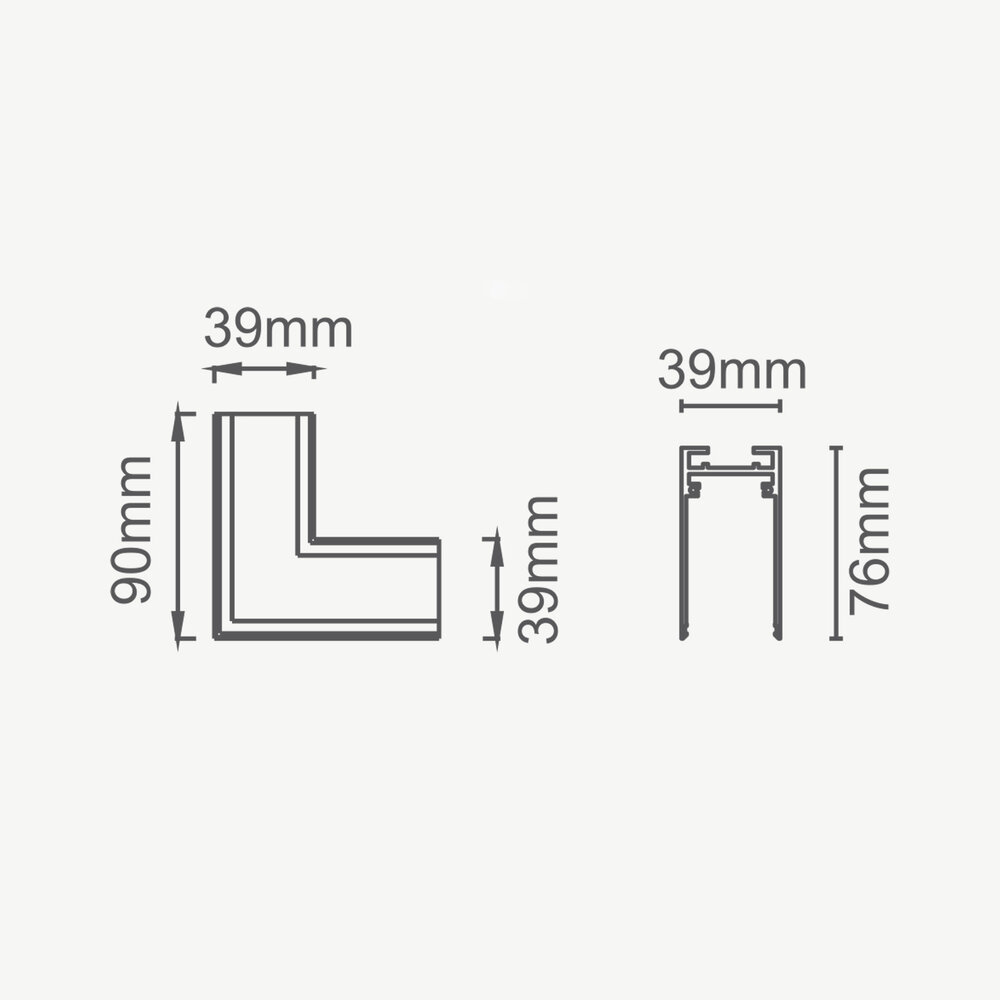

With the CLIXX 90° corner connection, you can easily extend the CLIXX system to create a unique line pattern. The profile has a compact size of 76 mm high and 39 mm wide. The CLIXX recessed profile is made of durable aluminium and then powder-coated. The profiles are available in black and white.
We offer the CLIXX magnetic 24V track system in the following dimming methodes:
TRIAC dimmable (trailing edge)
Perhaps the best-known form of LED dimming, where the lamp can be easily operated with an LED wall dimmer. With a dimming range of 100% you can dim the lamp until it is completely off. The driver is exchanged with a dimmable driver. No additional control wires are required for TRIAC dimming (trailing edge).
ZIGBEE 3.0 (suitable for Philips Hue)
Smart lighting is becoming increasingly common in interiors and exteriors. Our CLIXX light modules can be equipped with a ZIGBEE 3.0 protocol. The CLIXX system is therefore suitable for connecting to Smart Home systems such as Google Home, Amazon Alexa, Philips HUE, Apple Homekit, IKEA Trådfri, NIKO home control, Busch [email protected] and Fibaro.
The CLIXX light modules can be controlled separately and grouped using the Smart Home Systems. Simply dim the lights by adjusting the brightness via an app and create the desired atmosphere. A separate dimmer is therefore unnecessary. By dividing the various lamps into groups, rooms can easily be controlled separately. This makes it possible to control the living room and kitchen separately from each other.
There is no need to buy separate fittings as the light modules of the CLIXX system have an integrated LED light source. This makes the CLIXX system sustainable and environmentally friendly.
Use the TRIAC CLIXX rails/profiles in combination with the ZIGBEE 3.0 modules.
With DALI you have full control over the light. DALI makes it possible to set each lamp individually or to assign it to a group. With DALI you can create different light scenes in every room which are stored. An optional motion sensor and dimmer help to significantly reduce energy consumption. This makes DALI particularly suitable for objects such as offices, shops, restaurants or hotels. 2 extra control wires are required to connect DALI.
The LED driver is controlled by an external signal between 1 and 10V. Perfectly dimmable in a range from 10% to 100%. Applicable with many home automation systems. It is necessary to place a 1-10V actuator between the home automation system and the fixture. Two extra control wires are needed to connect 1-10V.
